Description

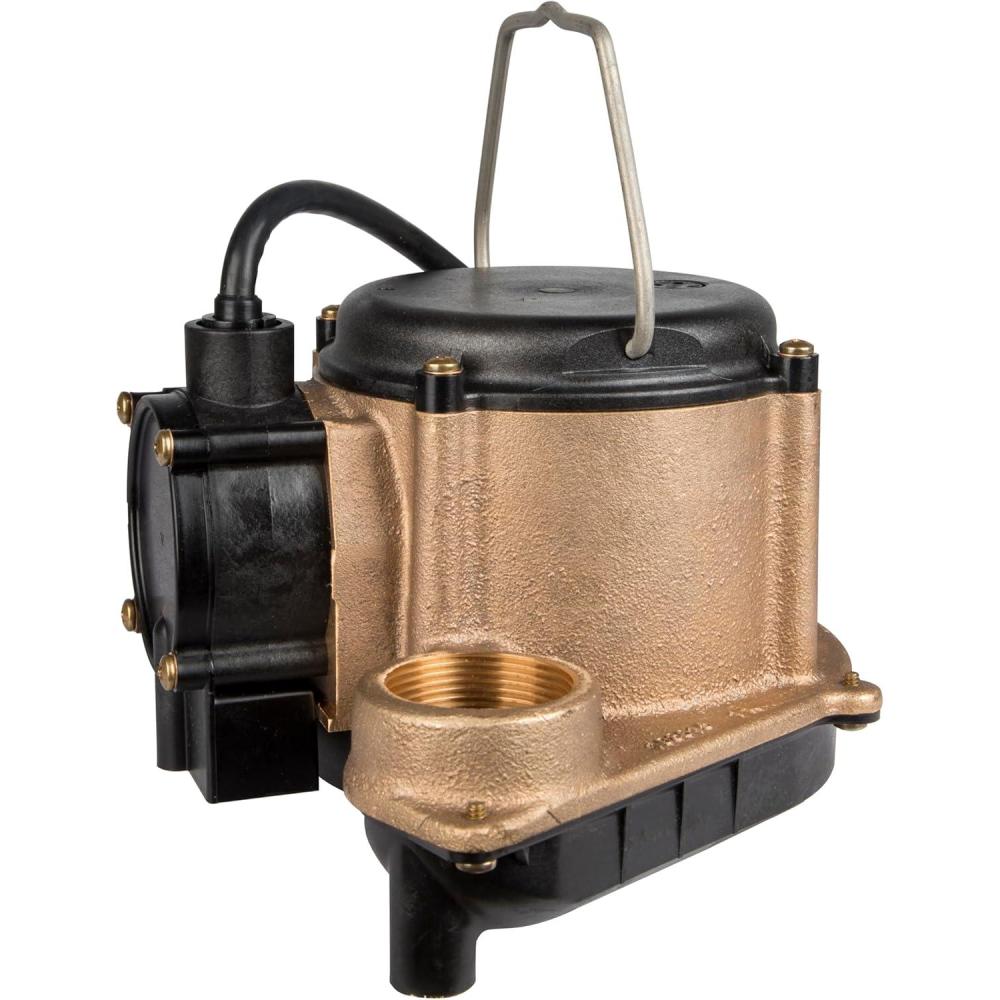

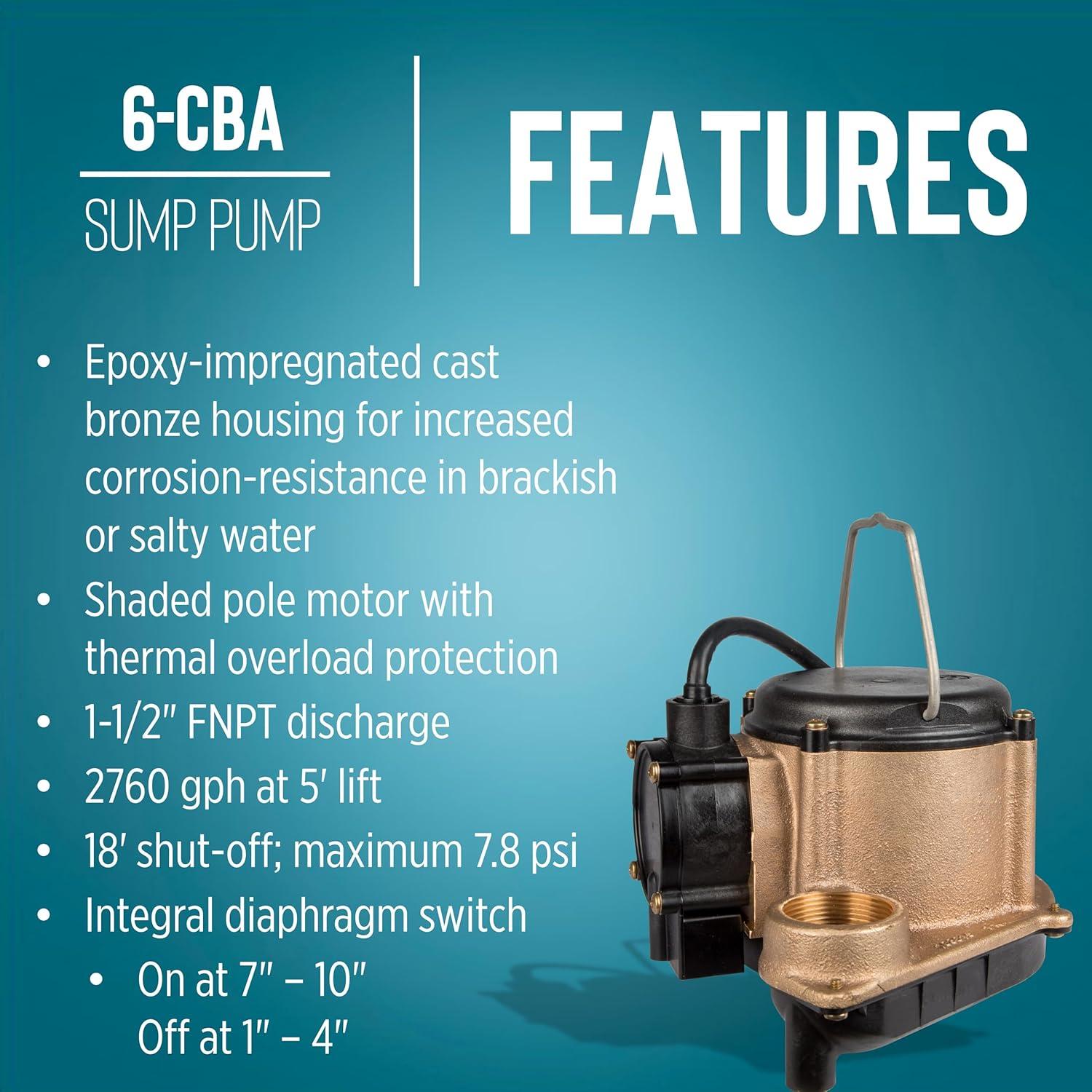

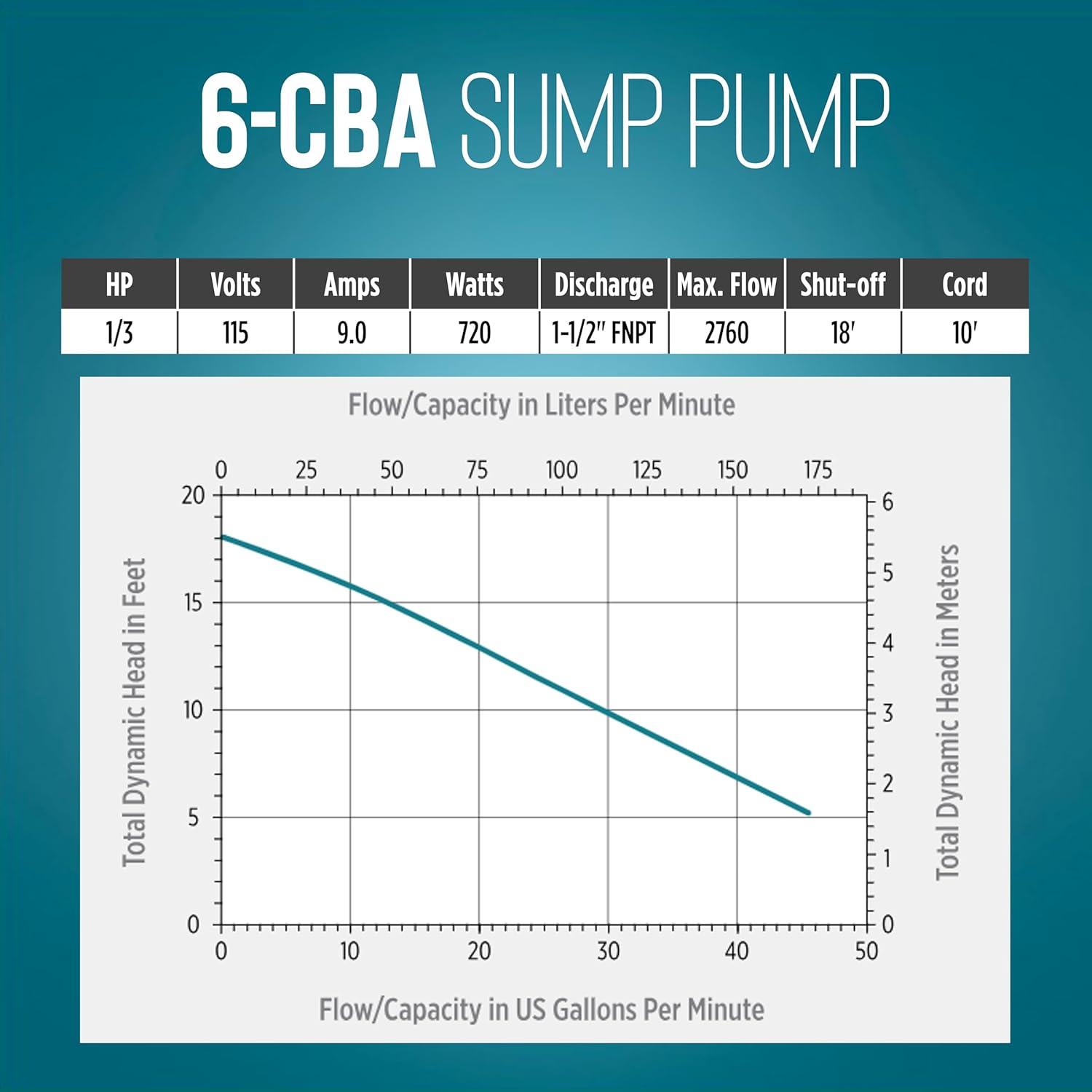

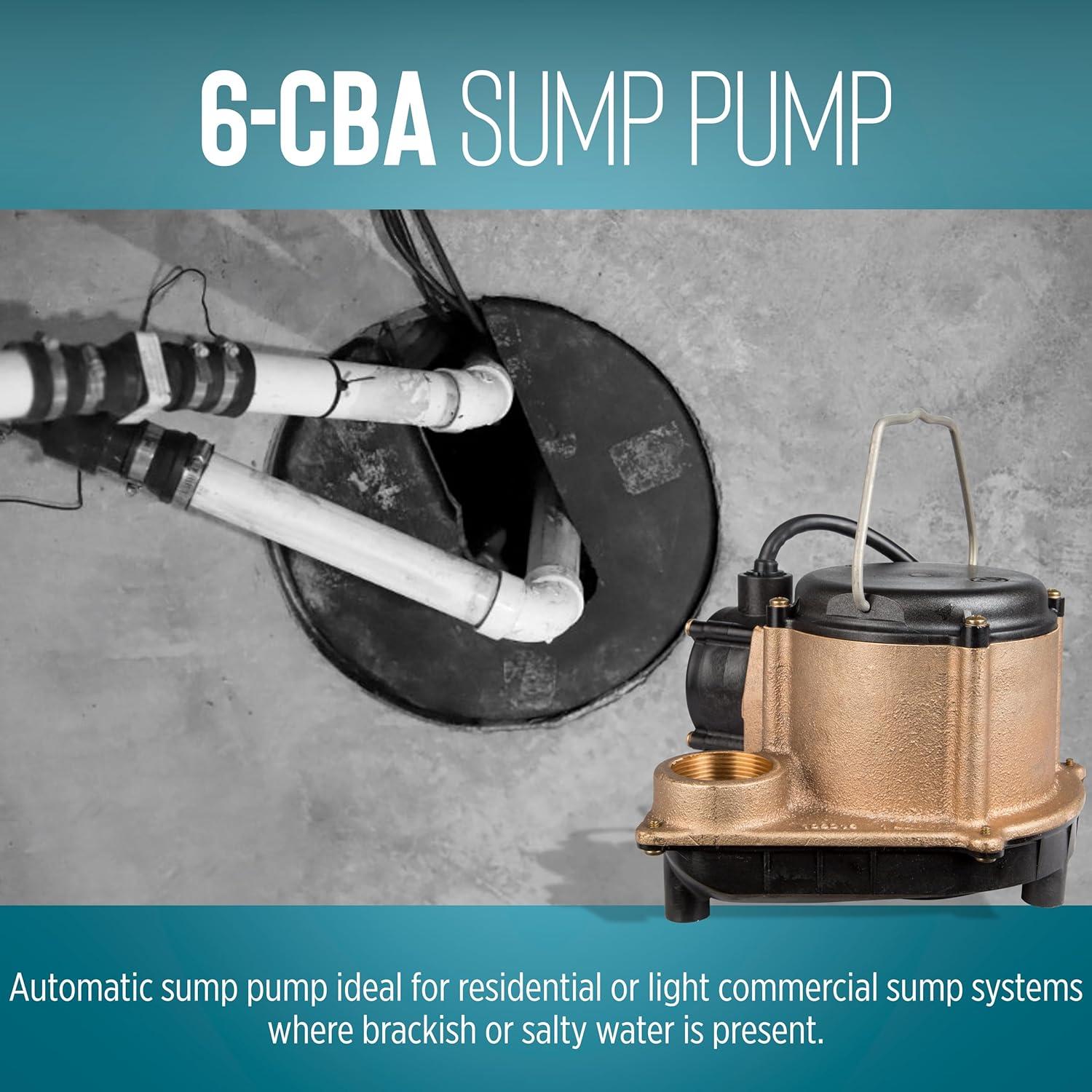

The Little Giant 506357 6-CBA automatic submersible epoxy impregnated cast bronze pump is ideally suited for sump systems where the water is brackish, salty, or briny such as sump systems where treated water flushes into the sump pit or in areas where brackish water is present. The 6-CBA comes equipped with a continuous duty, 1/3 hp 115-volt, shaded pole, oil-filled motor with thermal overload protection. This pump delivers up to 2760 gph (46 gpm) at 5' lift, has a shut-off of 18' and a maximum psi of 7.0. The 6-CBA has a 1-1/2 FNPT discharge. The maximum fluid temperature is 140 °F. The 6-Series is CSA listed in the USA and Canada.

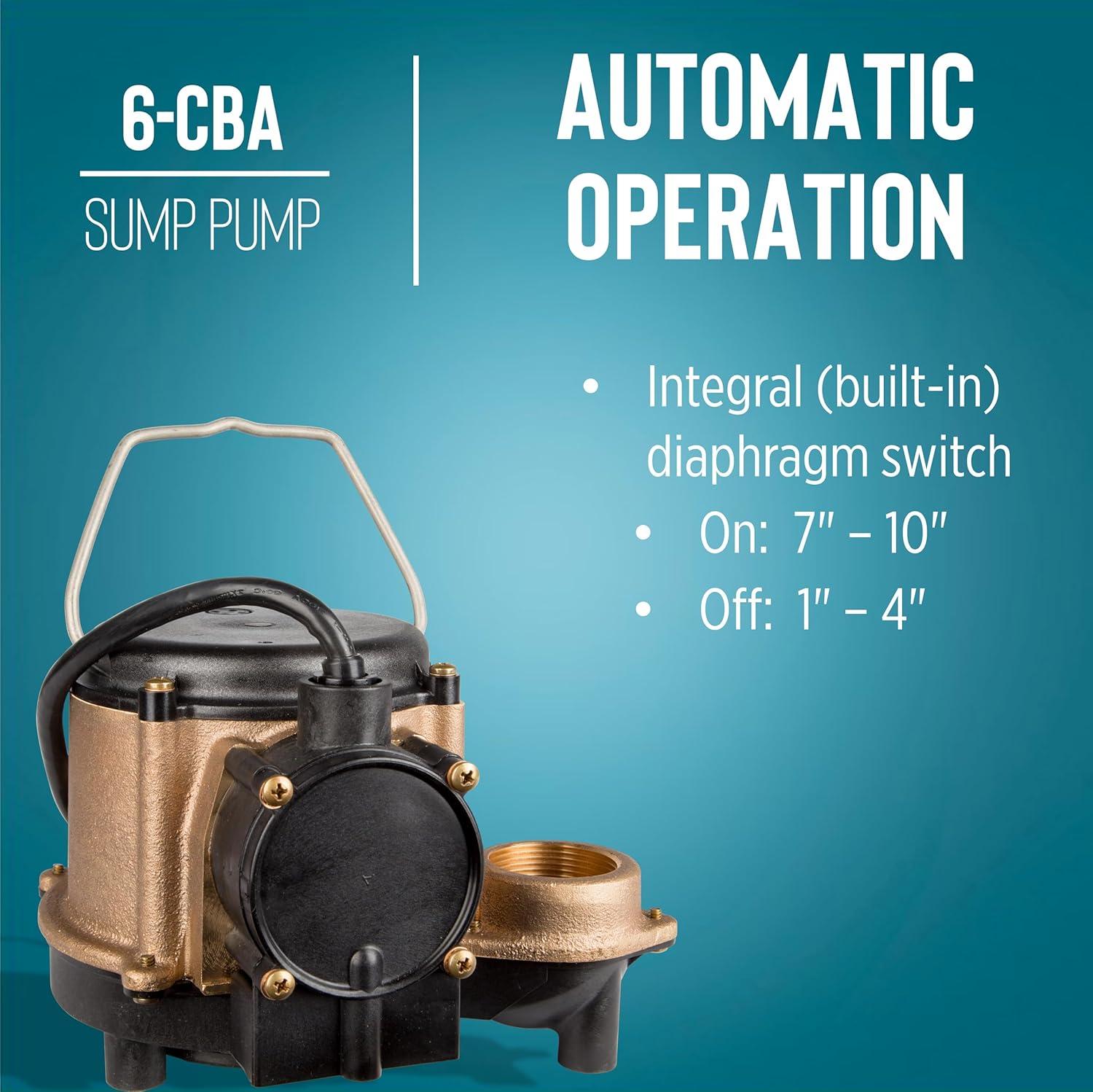

Designed specifically for sump systems, the pressure activated integral switch (not adjustable) activates when the water level is between 7″ and 10″ and shuts off when the water level drops to between 1″ and 4″. The switch cannot be overridden for manual operation and is therefore not recommended for emergency water removal or general water transfer. This pump comes with a 10' cord.
SWITCH OPTION TIPS:
– Integral diaphragm switches are designed for sump systems only. Minimum basin diameter required is 10″.
– Mid-level integral diaphragm switches cycle more frequently. They are designed for shallow under sink or laundry tub systems. Minimum basin diameter required is 10″.
– Piggyback float switches are designed for sump systems, emergency water removal or water transfer applications. They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. Float switches require more room to activate the switch, the minimum basin diameter is 18″.
– Piggyback diaphragm switches are designed for sump systems, emergency water removal or water transfer applications; They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. The minimum basin diameter is 10″.
