Description

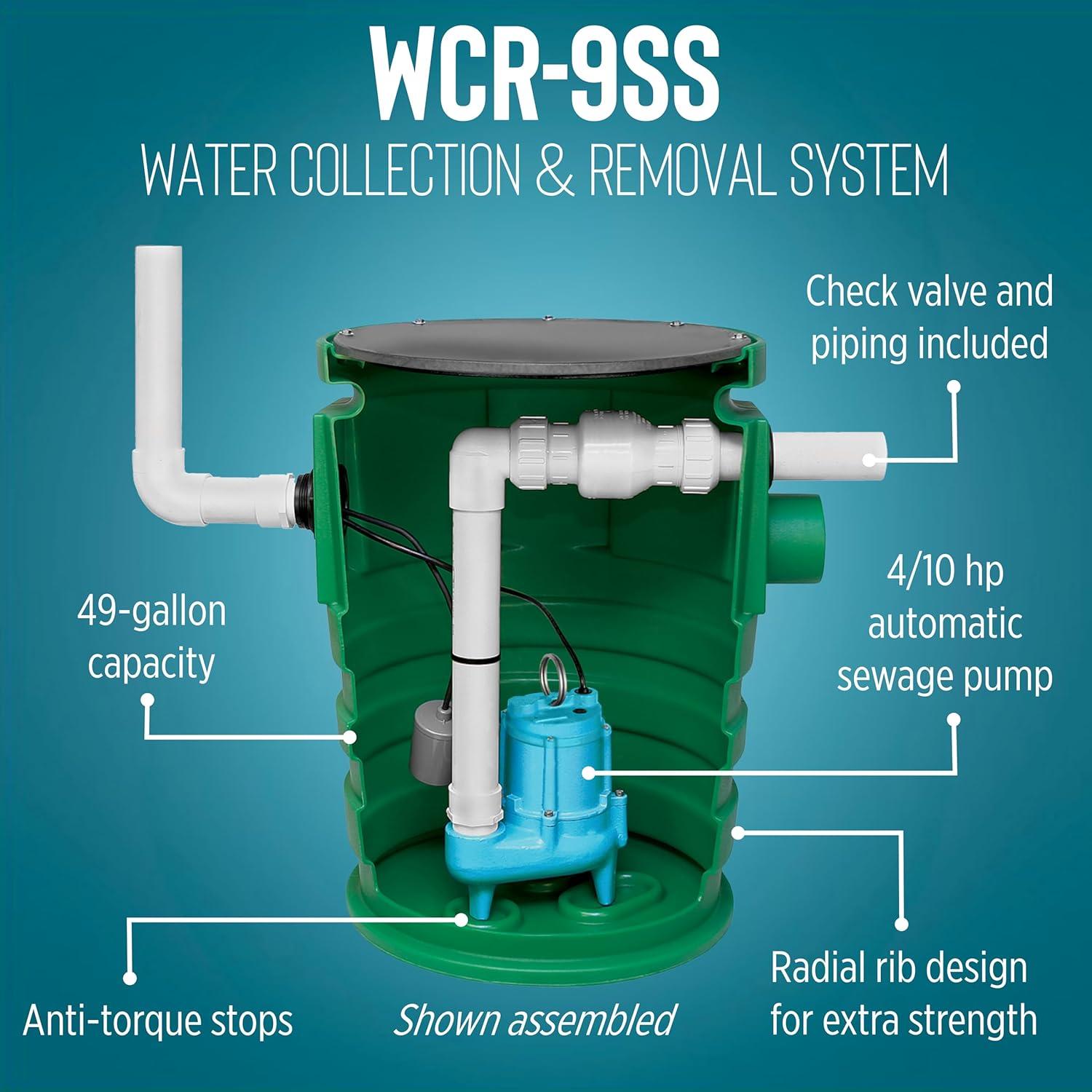

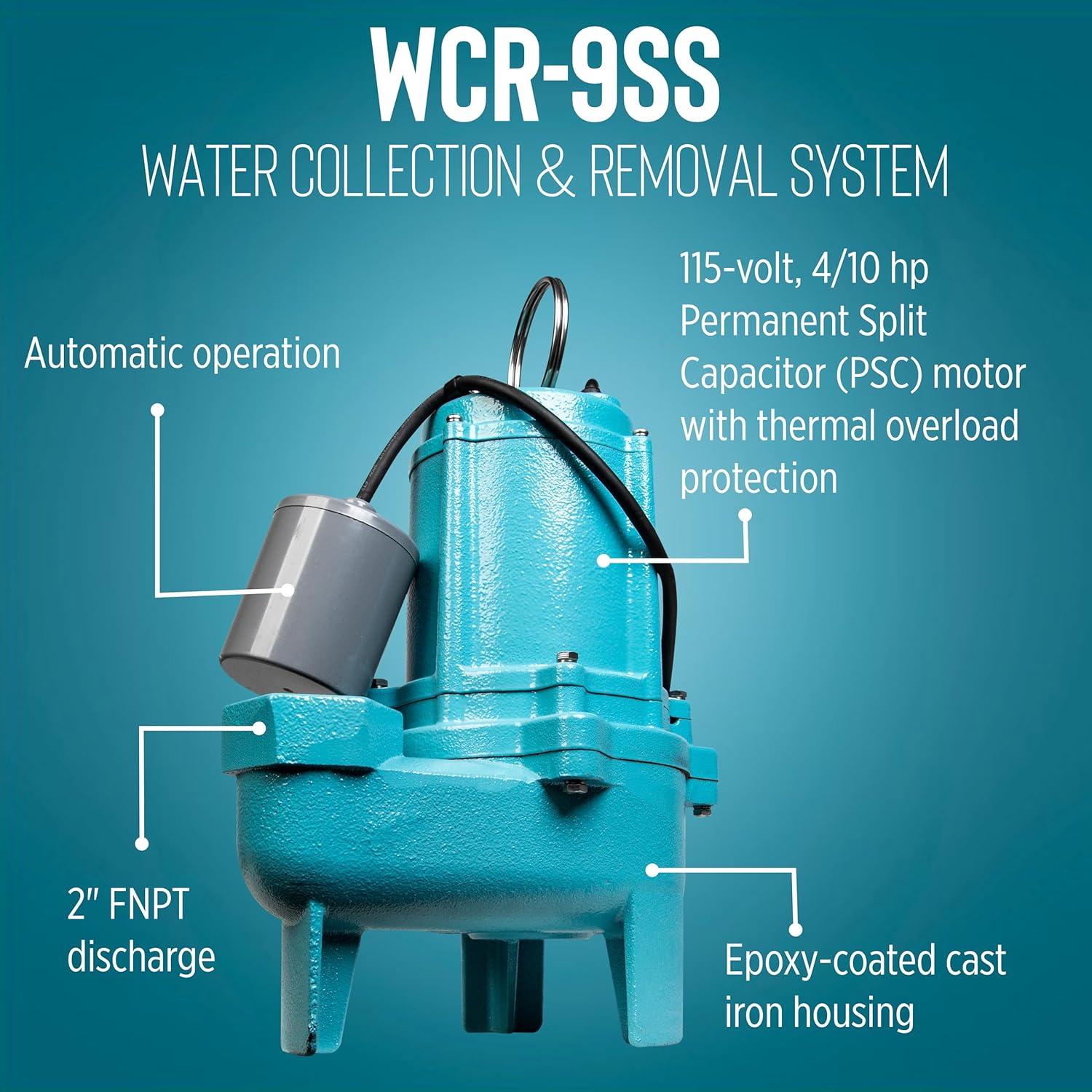

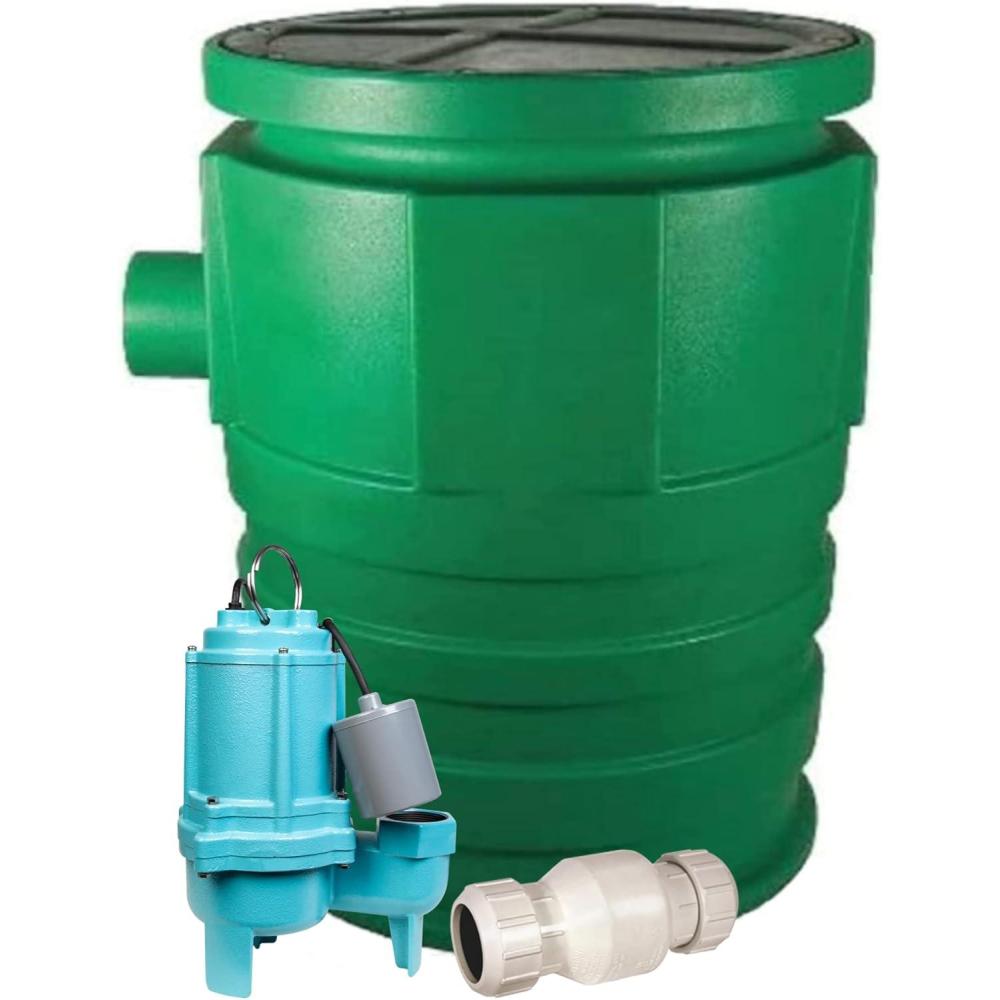

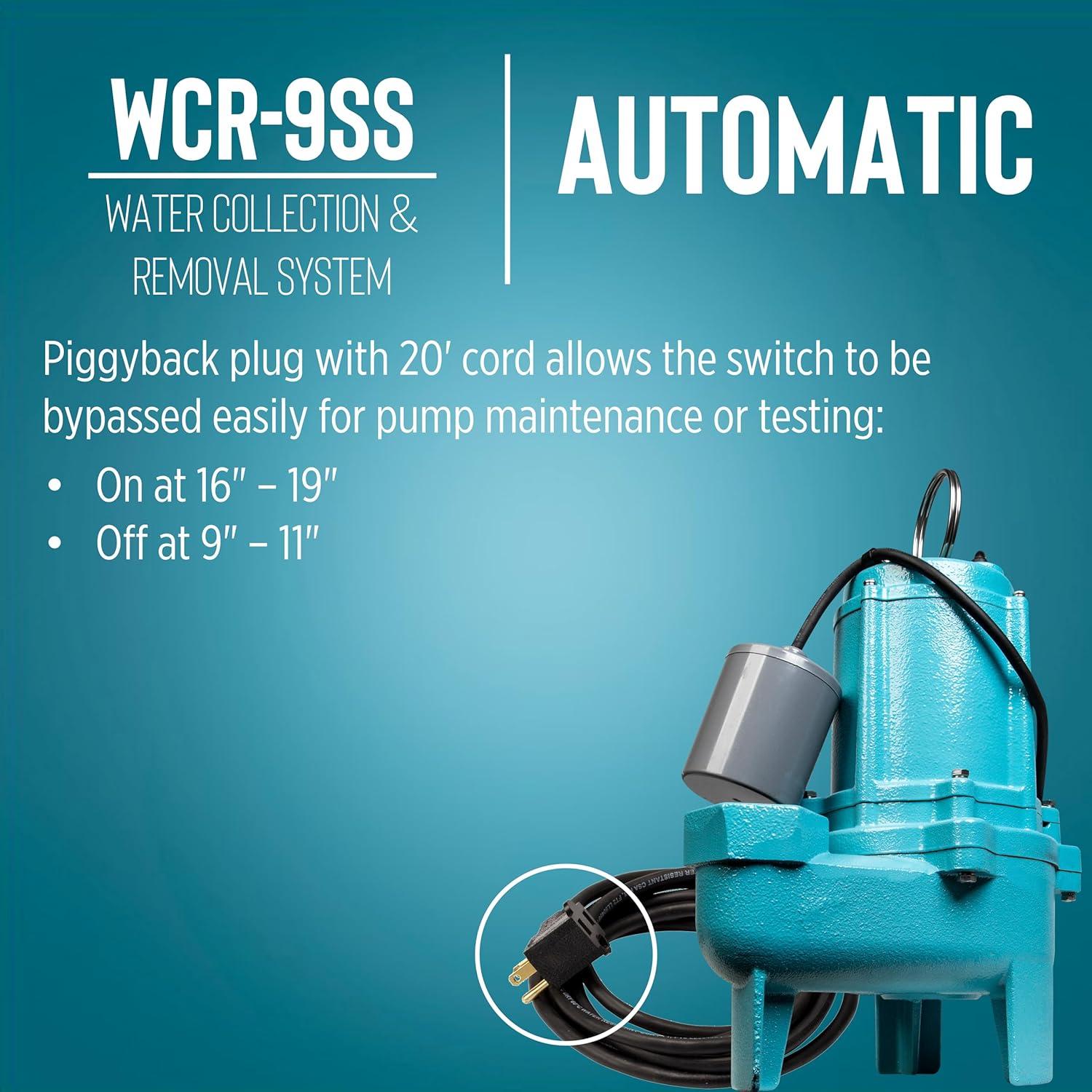

Little Giant's WCR-9SP wastewater system is designed for the collection and removal of seepage water in areas with poor draining. The system consists of a 20″ x 30″ polyethylene basin with a structural foam cover. The discharge and electrical connections are made to run through the side of the basin. Once installed, no digging is required for servicing the system. The unit is equipped with schedule 40 PVC discharge piping with a pre-drilled air bleed hole and a full flow check valve. The unit is also equipped with a 2″ bulkhead fitting to easily route power cords out of the basin. The WCR-9SP comes equipped with a 4/10 HP 9SC-CIA-RF sewage ejector pump with 20' cord. The pump features cast iron housing, cover, and volute which has a protective epoxy coating. Automatic operation is achieved by use of a piggyback mechanical float switch. The piggyback plug allows the unit to be switched to manual mode for maintenance or emergency water removal. This system does not come with a vent and designed for outdoor use only.
FEATURES:

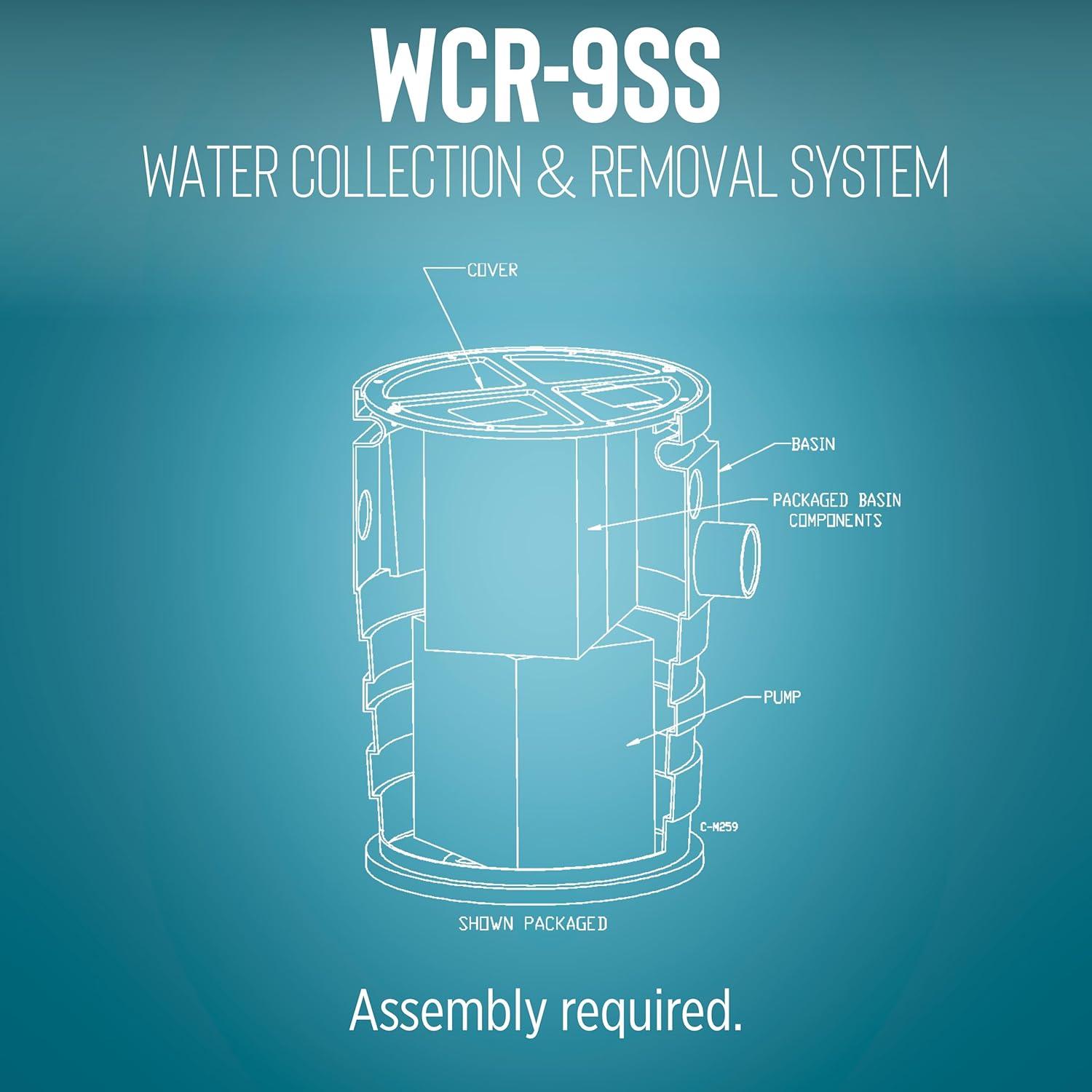

– Pre-packaged 20″ x 30″ polyethylene basin with 4/10 hp sewage pump (assembly required)
– Handles up to 2″ solids
– Structural foam cover
– Includes schedule 40 PVC discharge piping with pre-drilled air-bleed hole
– Designed with side outlets for discharge and electrical cords
– Includes 2″ bulkhead fitting to easily route power cords out of the basin
– Once installed, no digging is required for system servicing
– Molded inlet hub and anti-torque stops
– Radial rib design for extra strength
– Integrated anti-floatation collar
