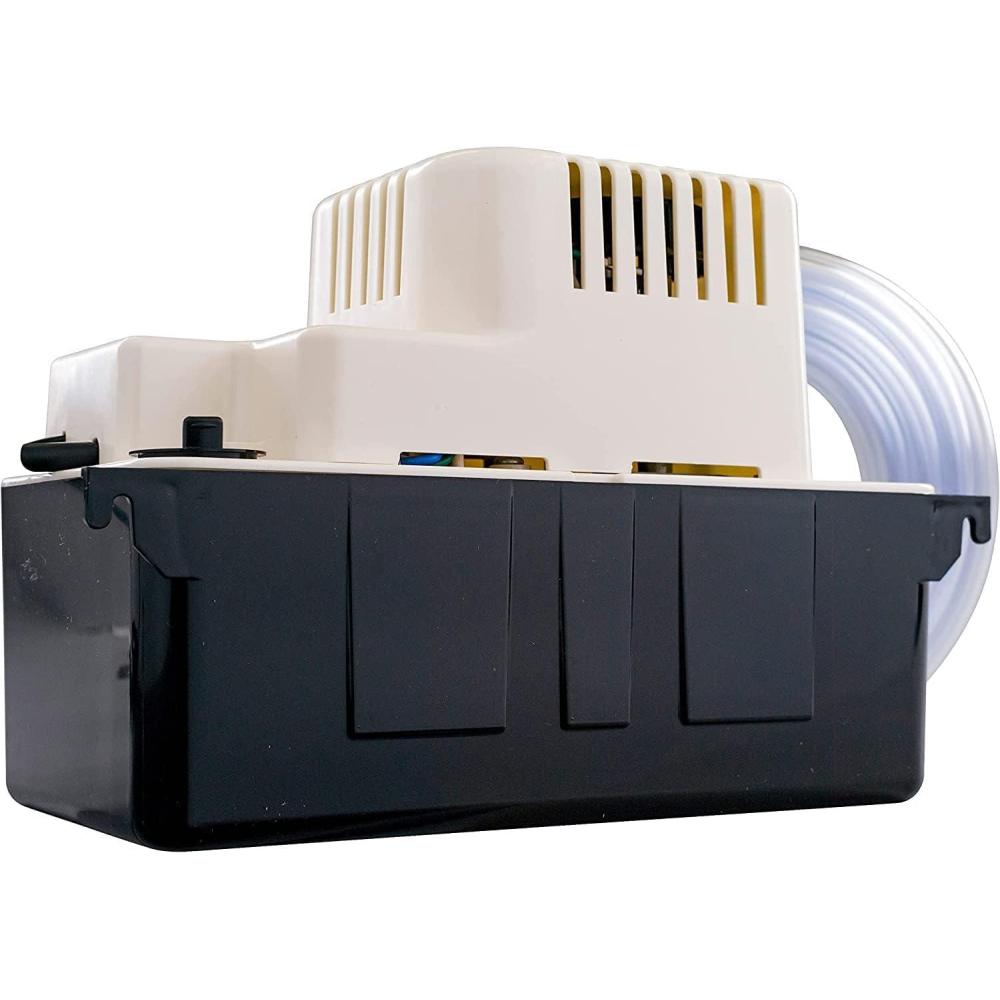

Little Giant VCMA-20ULST 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 20-Foot Tubing, White/Black, 554435(115V with Overflow Detection Switch & Tubing)

Description

Product Description

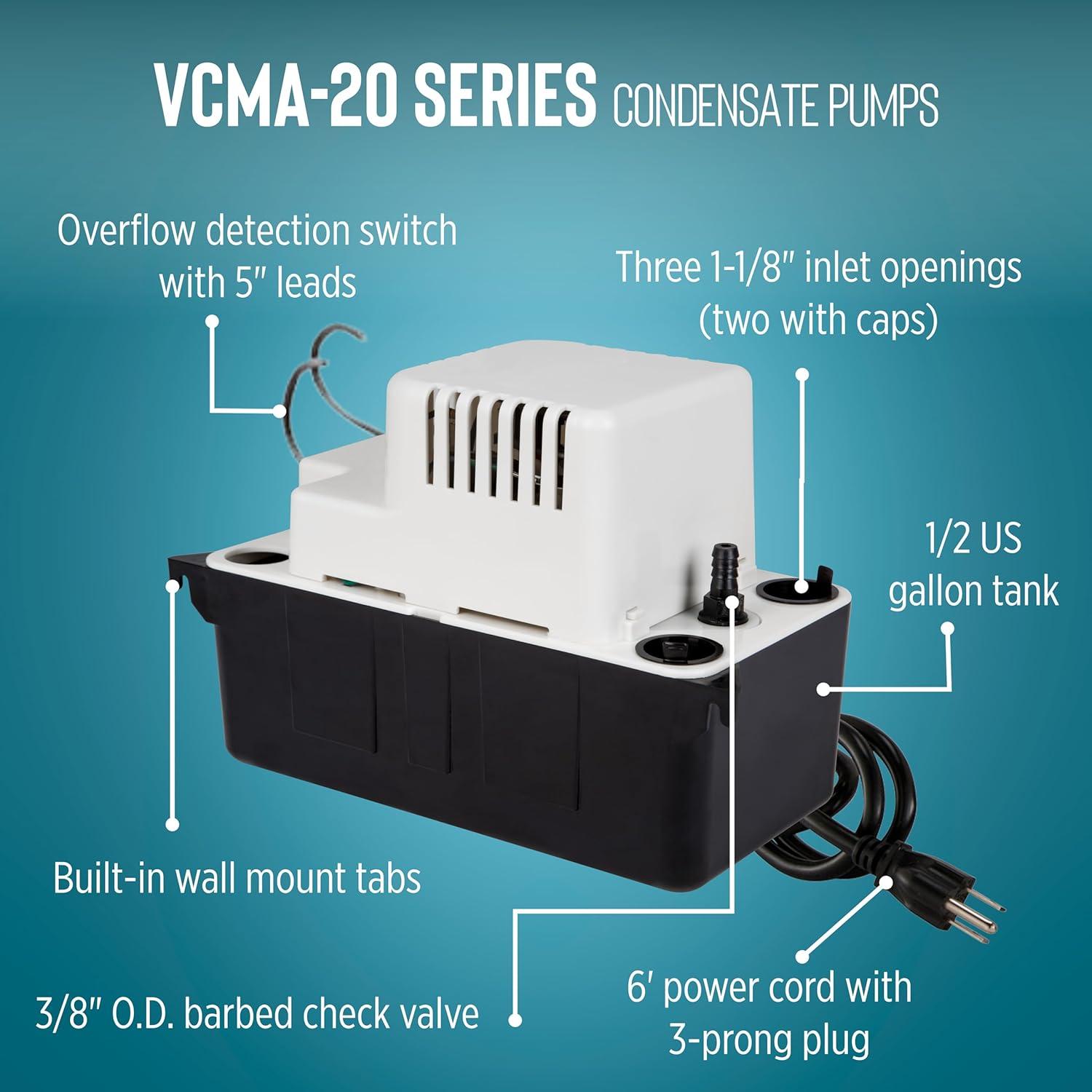

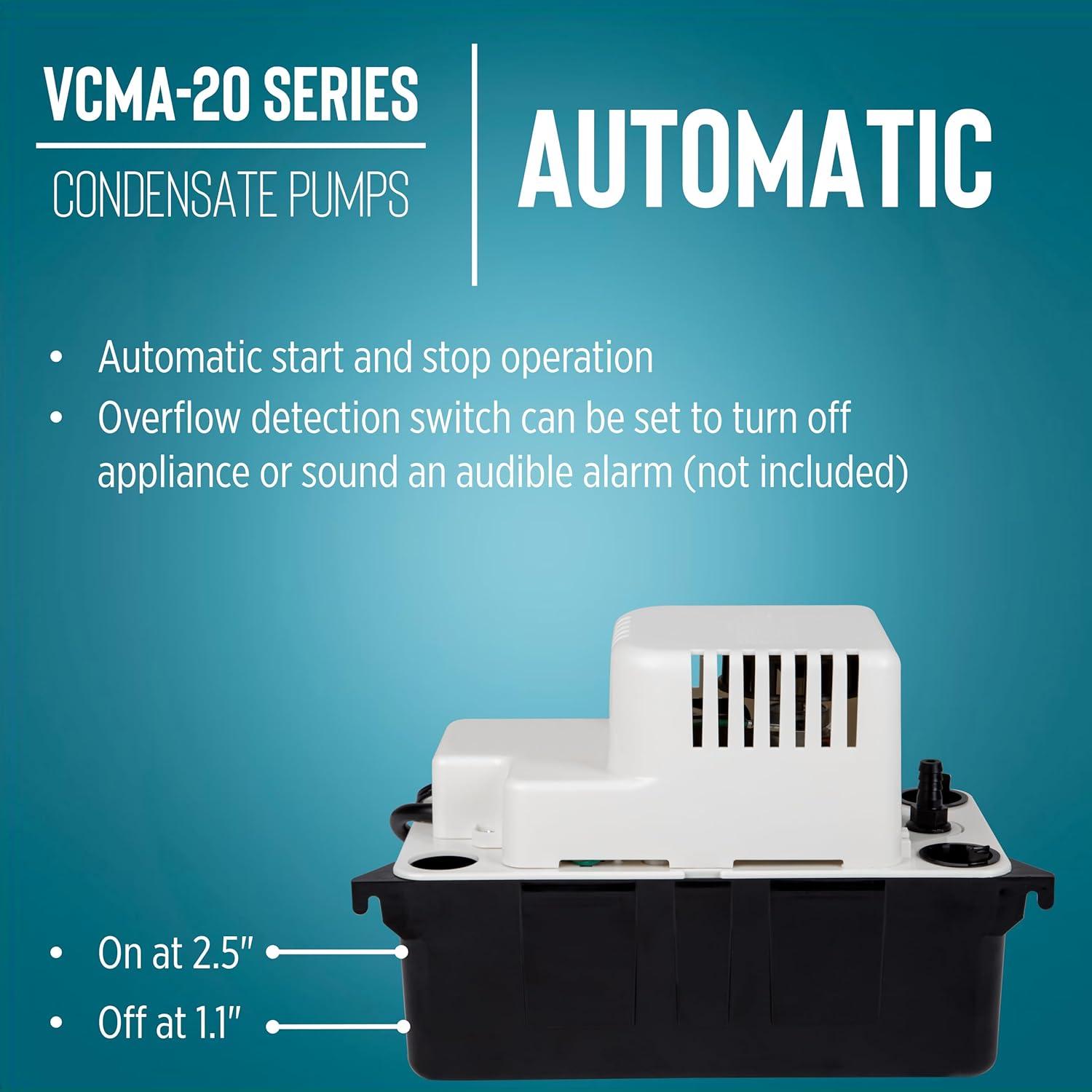

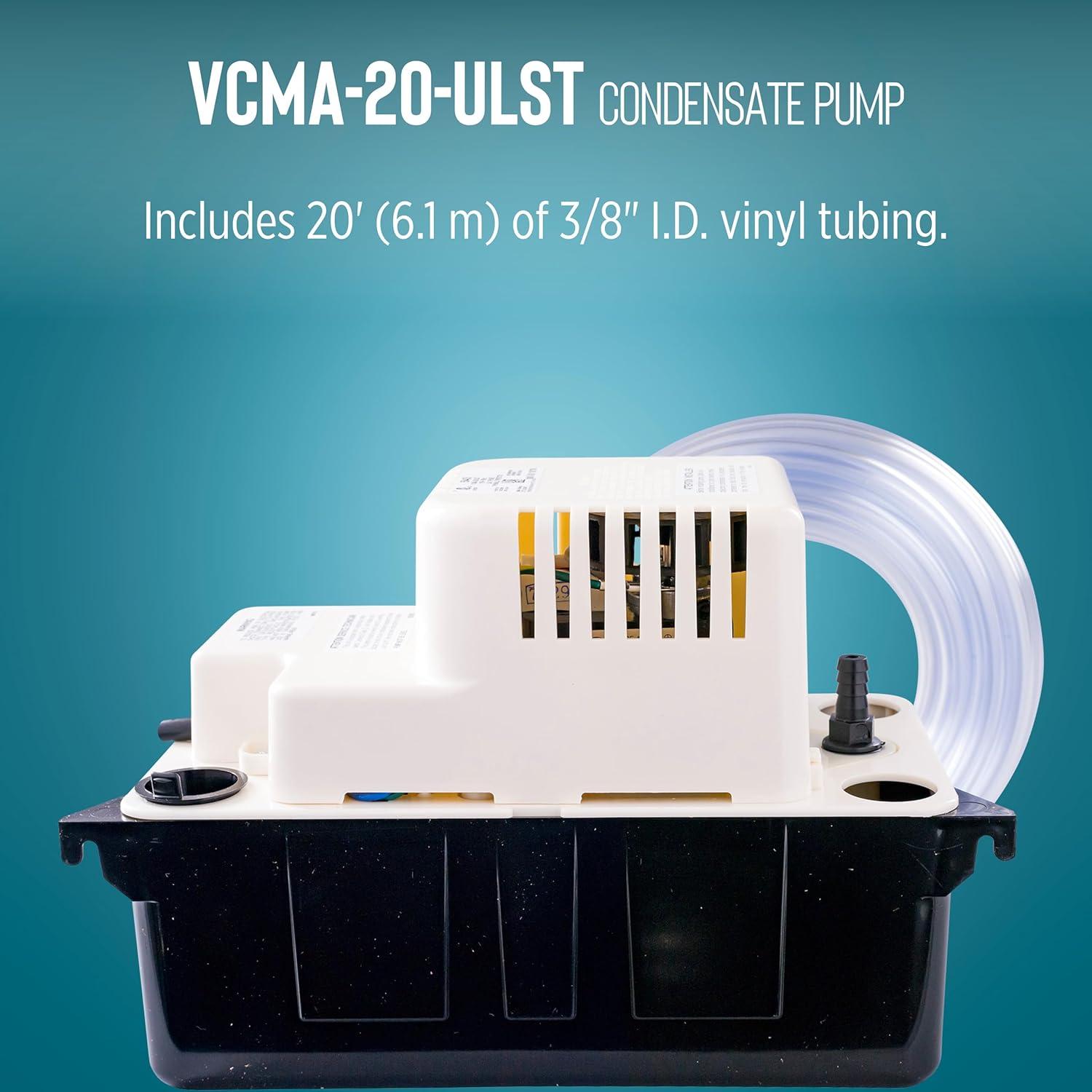

The Little Giant VCMA-20ULST 115-volt condensate removal pump is a 1/30 hp pump that is designed for collecting, detecting and removing condensation from air conditioners, dehumidifiers and refrigeration equipment. Its robust design is also suitable for high-efficiency gas furnace condensate and condensing boilers. This unit includes a 1/2-gallon condensate holding tank, a 3/8″ O.D. barbed discharge adapter with a built-in check valve, a 6' power cord with 115V plug , 20' of 3/8″ ID vinyl tubing, and an overflow detection switch. The overflow detection switch can be set to automatically shut the equipment off or be set to activate an audible or visual alarm (alarm not included); basic wiring knowledge is required. The high-performance 115-volt motor is equipped with thermal overload protection and is CSA certified to US and Canadian standards.

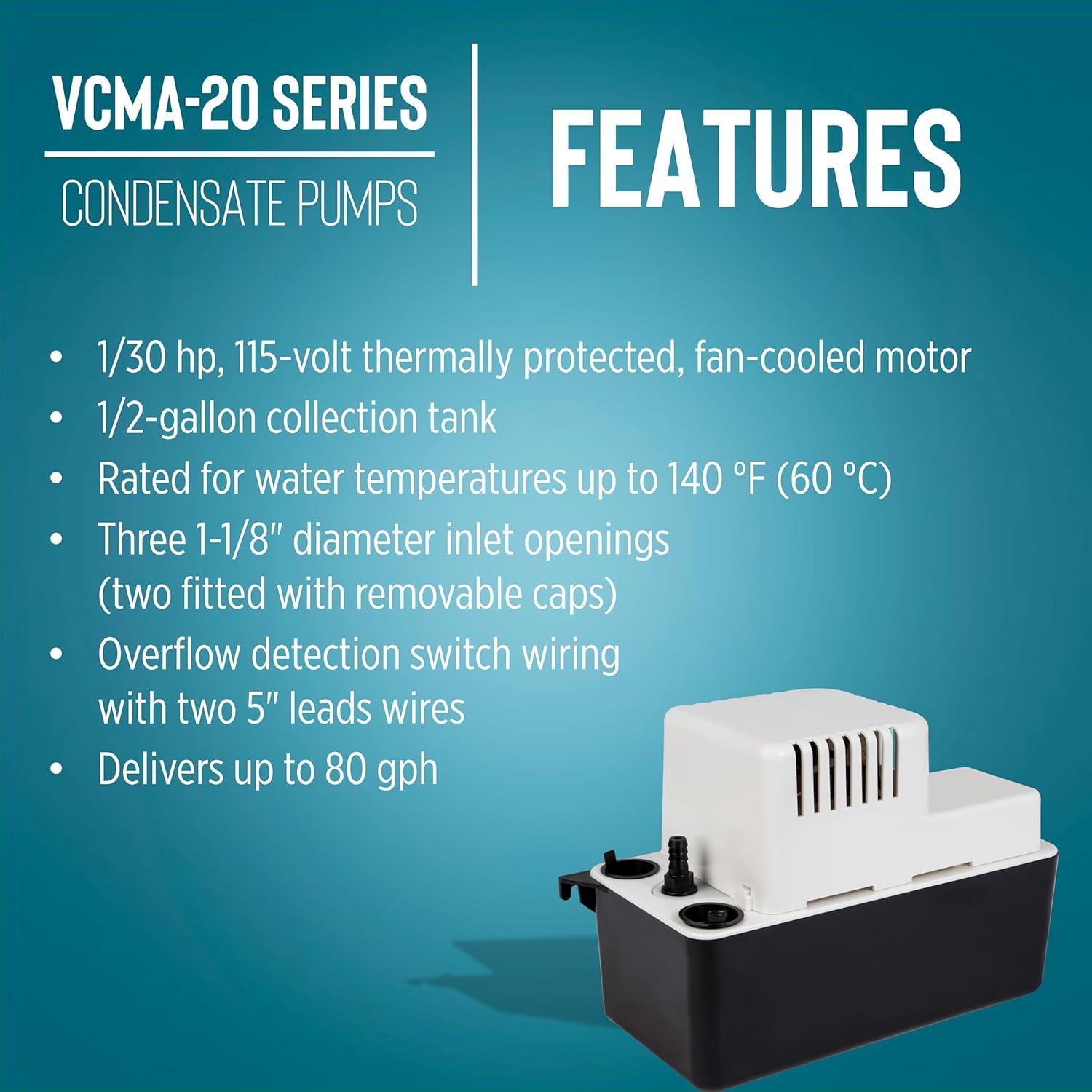

FEATURES & BENEFITS:

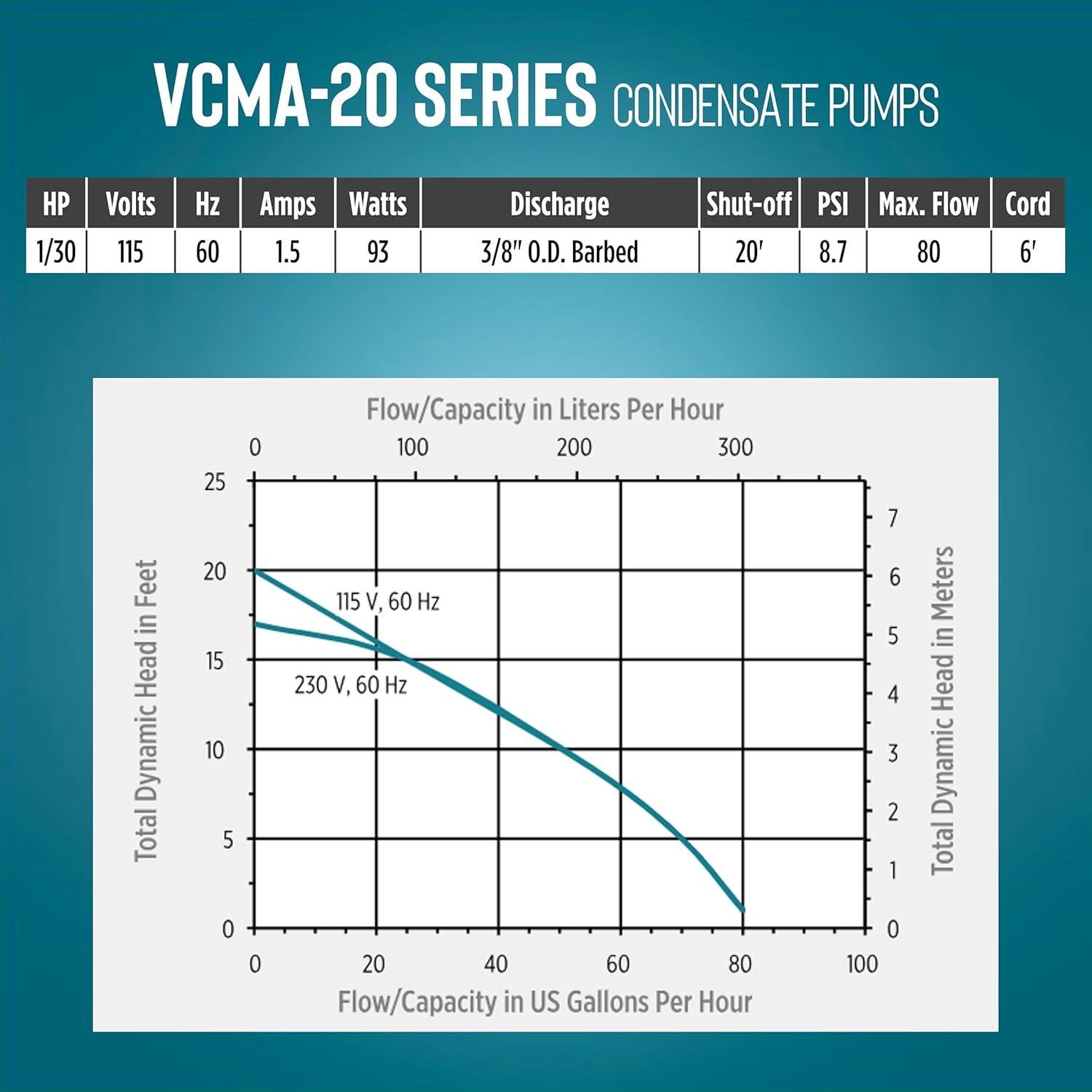

– 1/30 hp high-performance motor pumps 80 gallons of water per hour

– ABS, tank, motor cover and volute

– Stainless steel motor shaft

– 1/2-gallon tank capacity

INSTALLATION TIPS:

– This pump comes shipped with a cardboard insert marked “REMOVE”. Please remove and discard this insert before operating pump. Failure to remove the insert will cause the pump to overflow.

– Check the tubing for obstructions or kinks. Clean or replace the tubing, if necessary.

This is an authentic Little Giant product. The Little Giant brand is owned by Franklin Electric Co., Inc.

From the Manufacturer

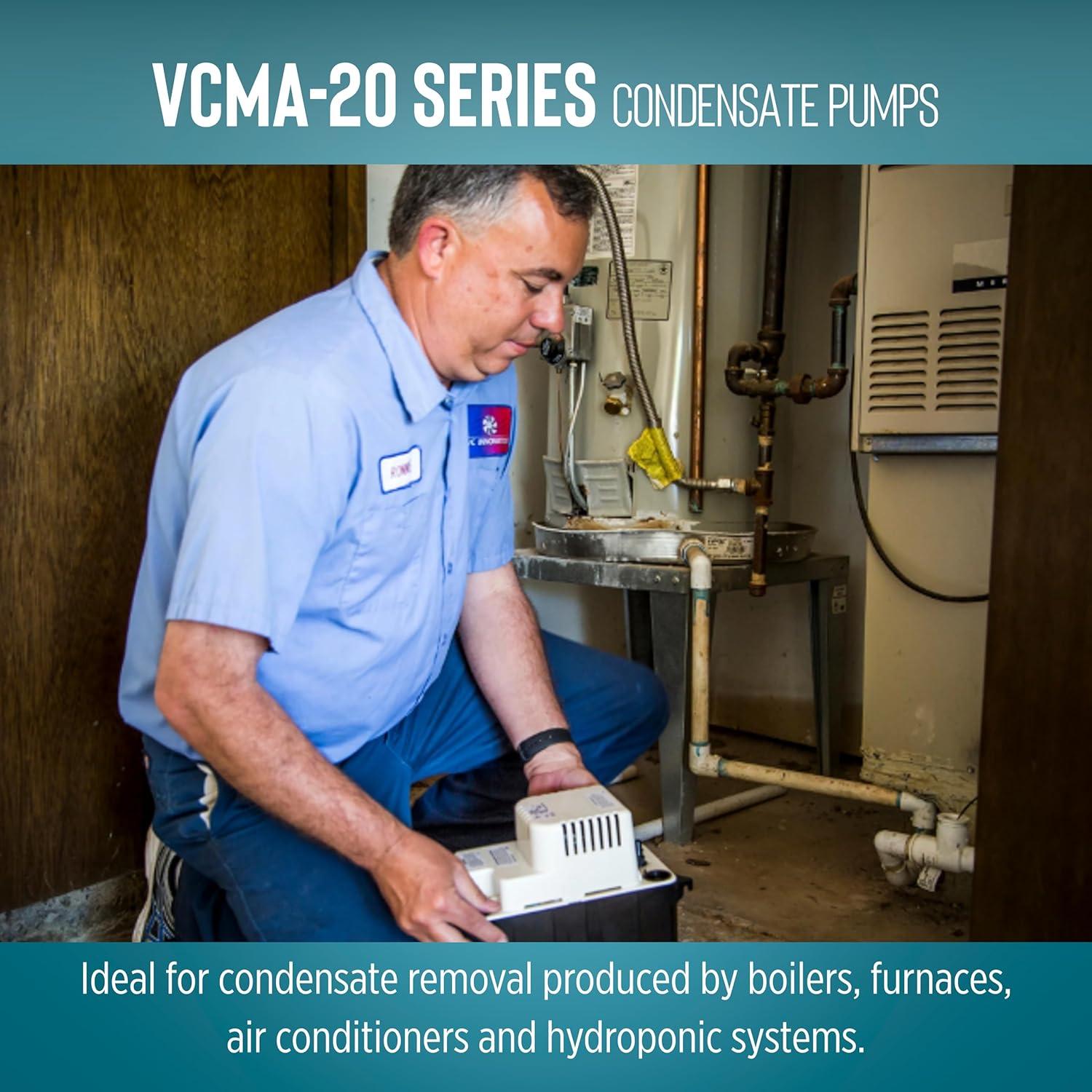

Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
