Description

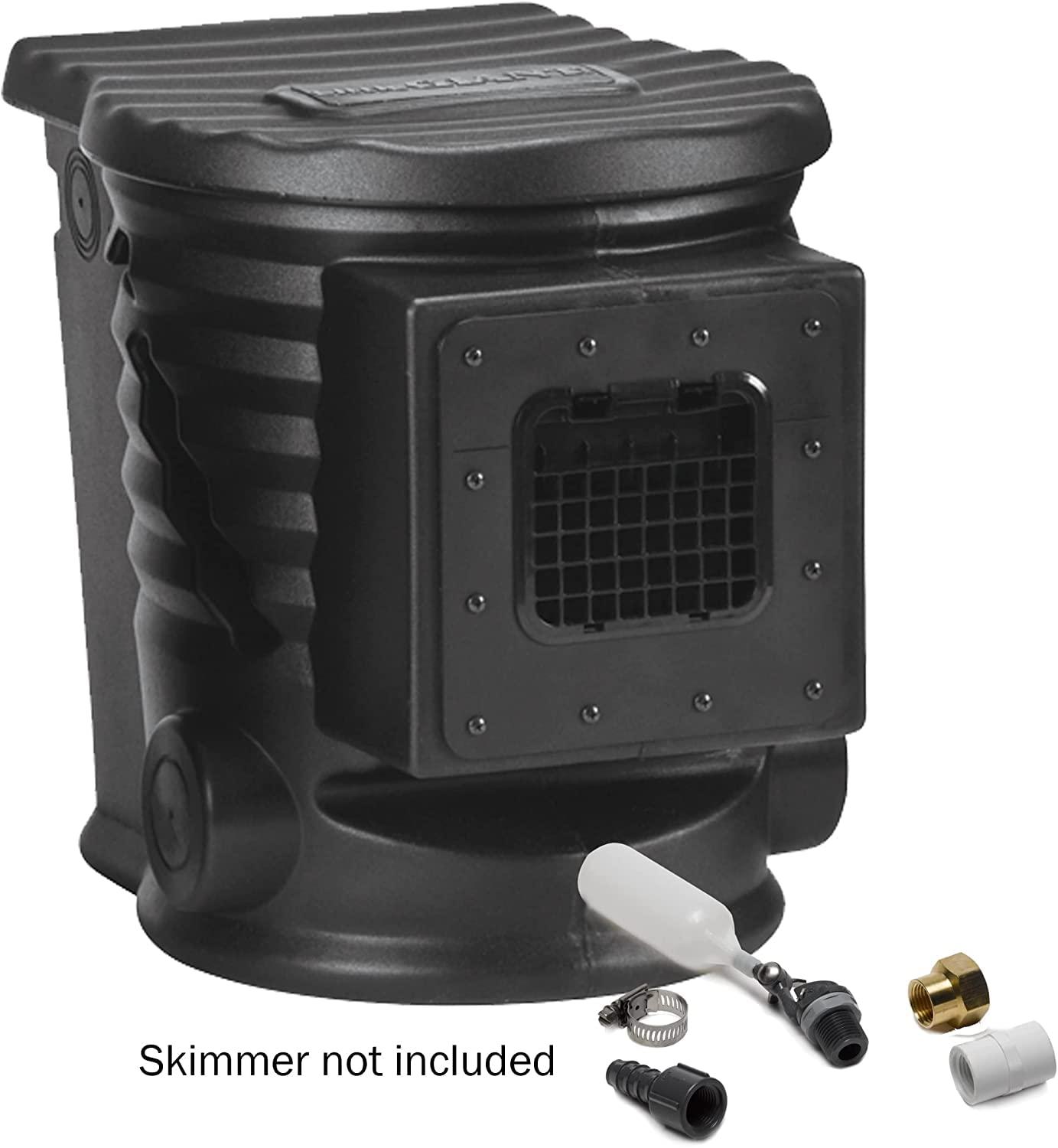

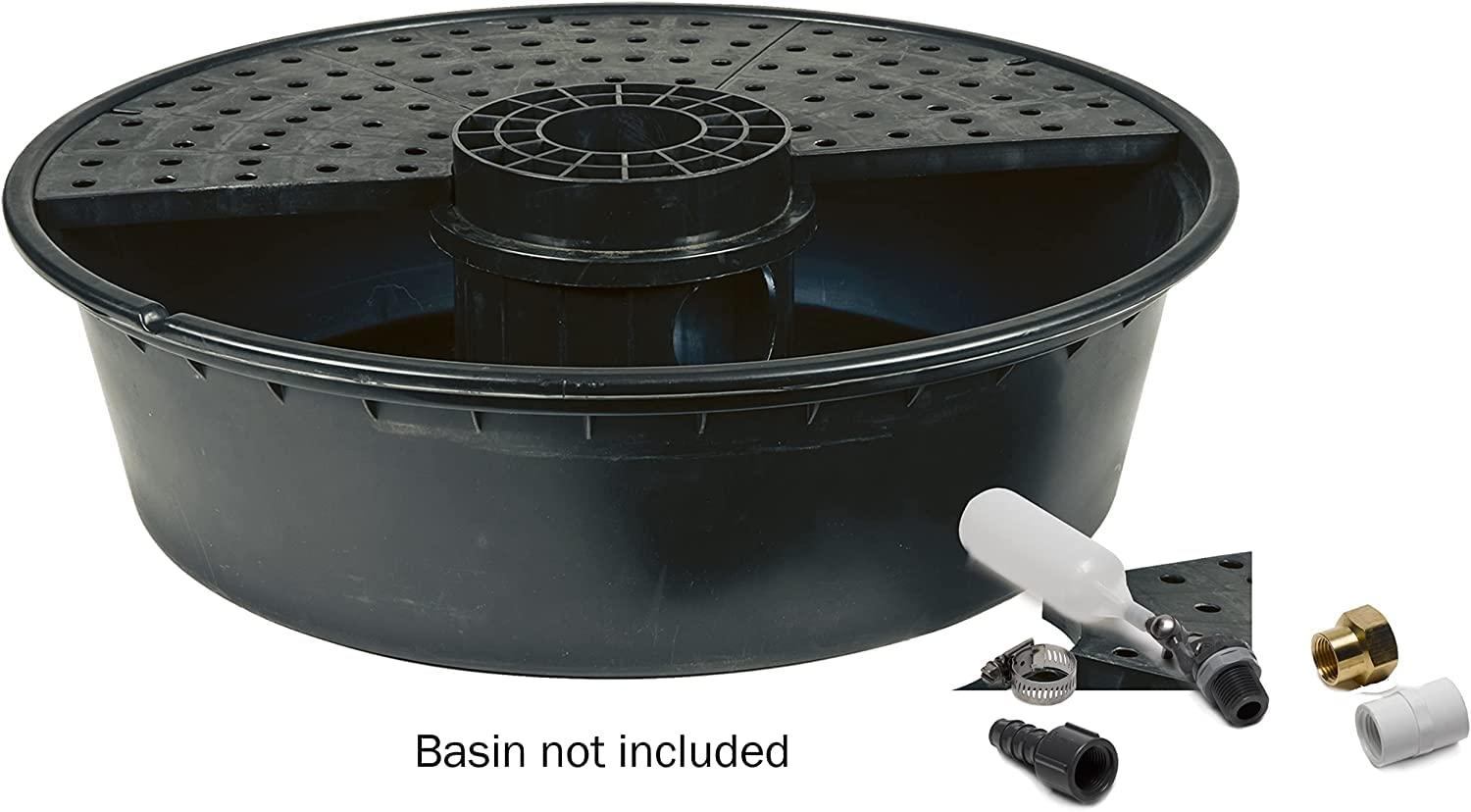

APPLICATIONS: Works with most skimmers and other pond/fountain equipment or reservoirs to allow water to automatically fill the vault, basin or reservoir

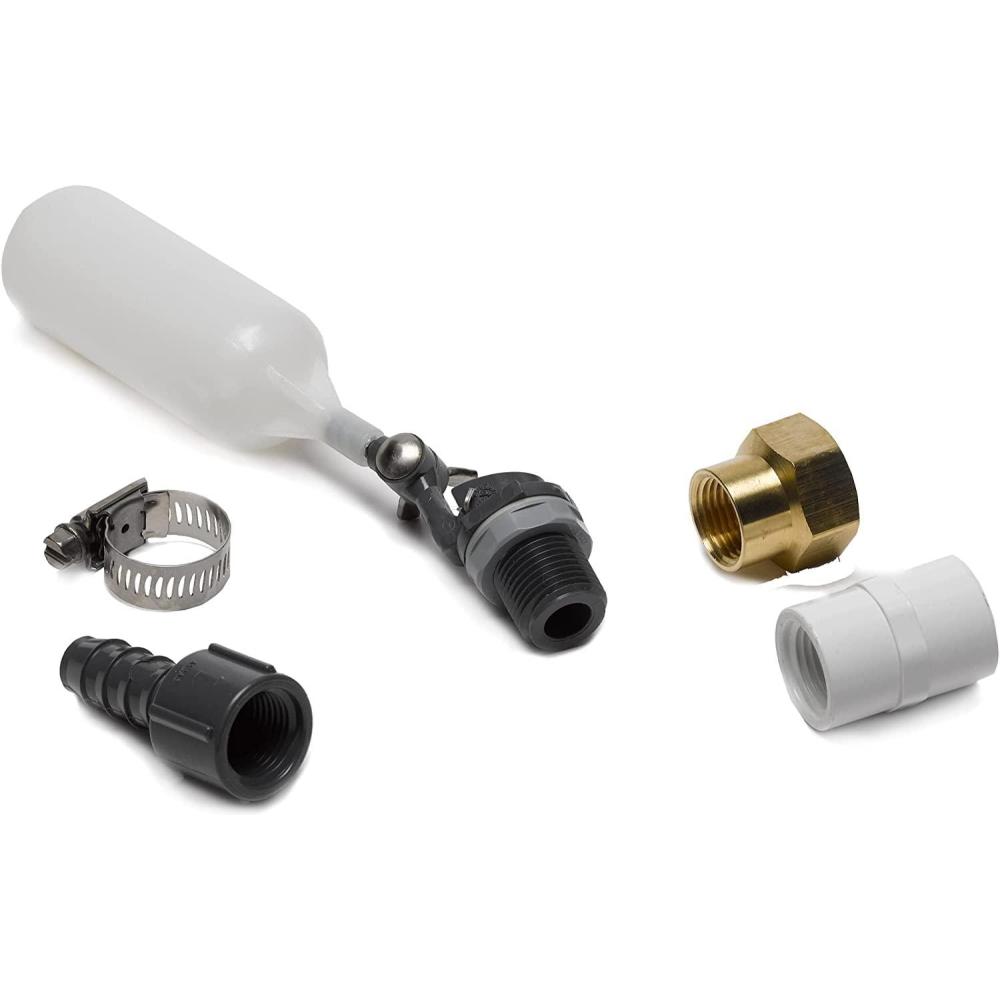

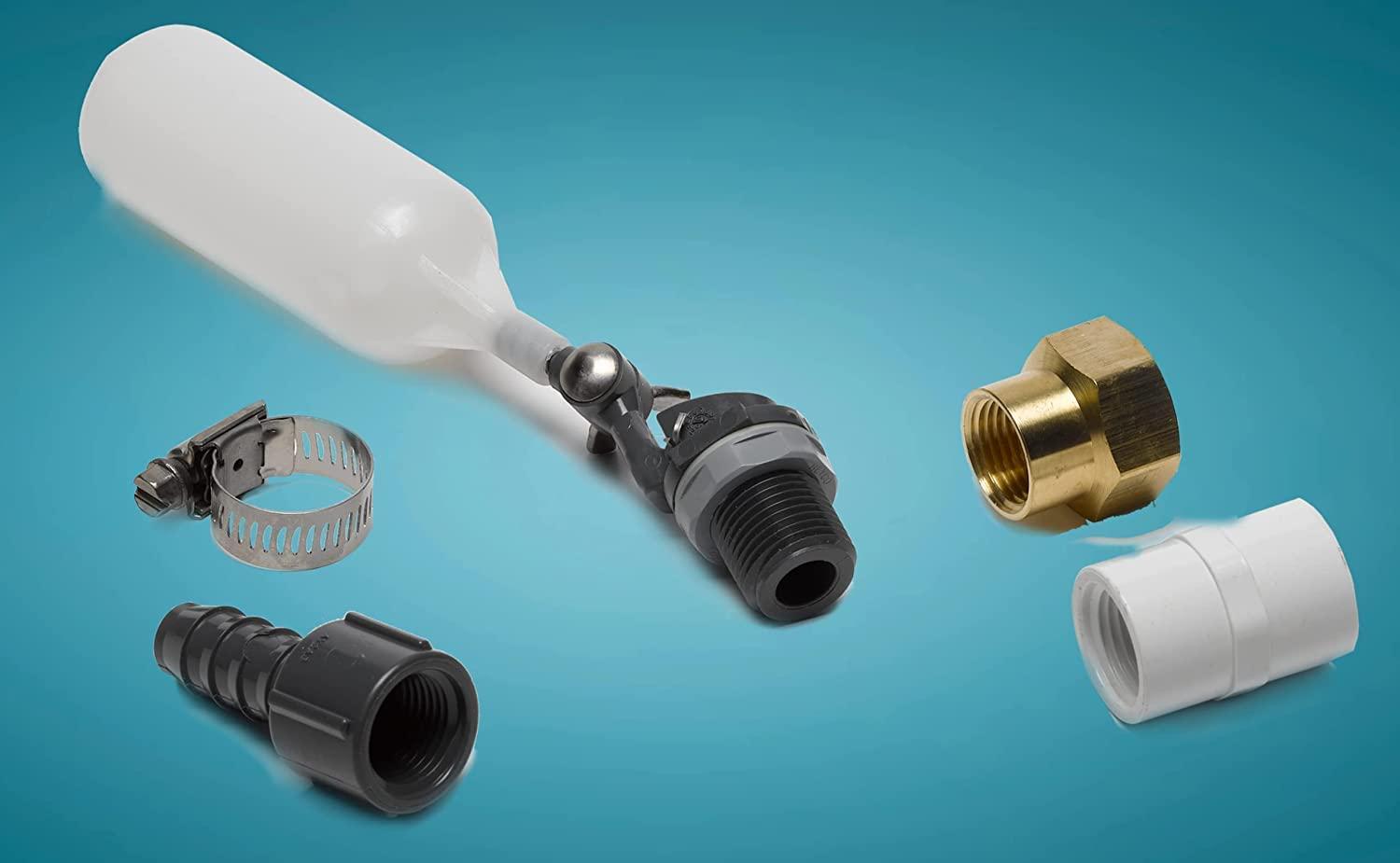

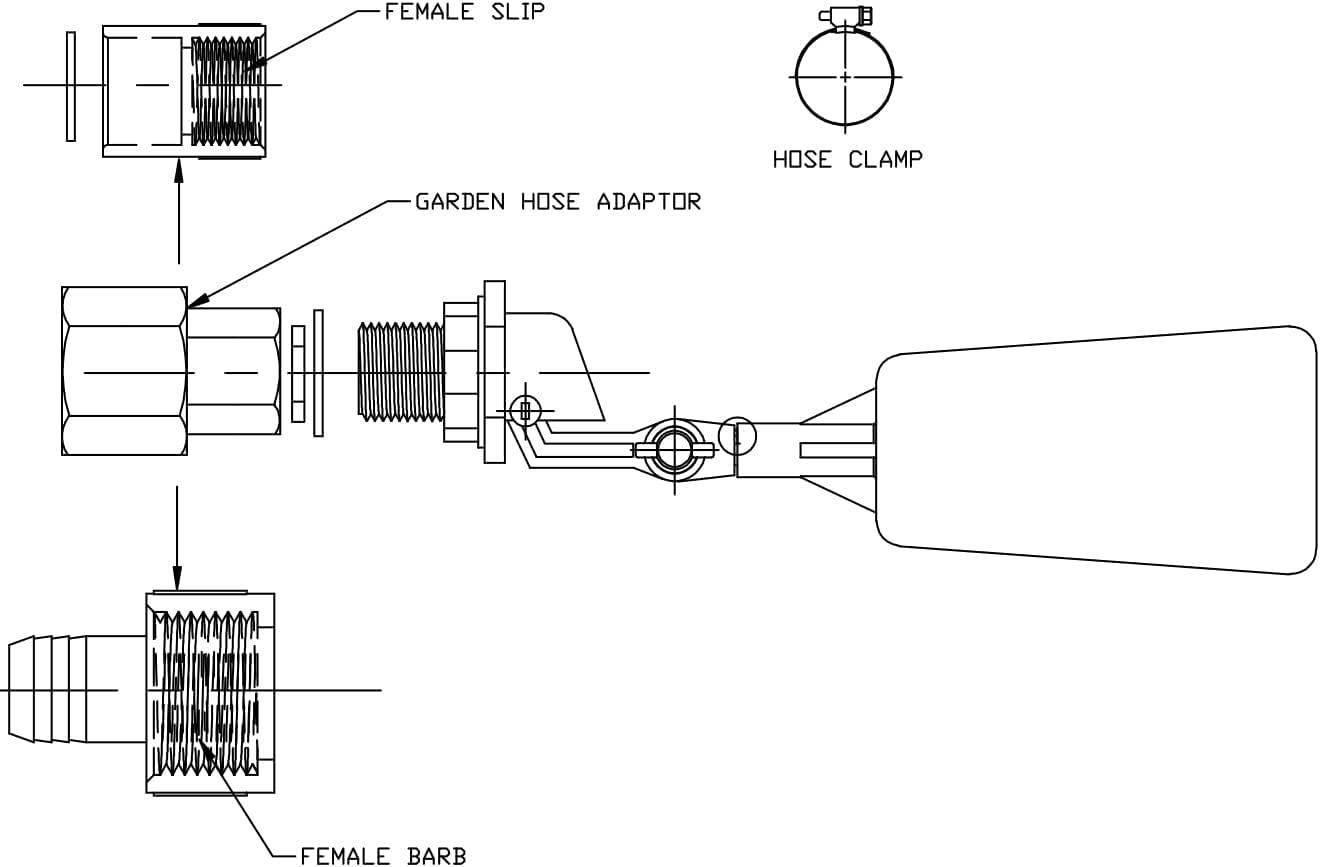

ADAPTERS INCLUDED: 1/2-inch MNPT valve comes with a 1/2-inch pipe adapter, 1/2-inch barbed adapter for 1/2-inch tubing and a 3/4-inch garden hose adapter
ADJUSTABLE: will maintain the water level approximately 1.25 inches below the horizontal centerline on the auto-fill mounting hole; adjust the wing nut near the float to adjust
SLOW FLOW RATE: helps maintain a healthy ecosystem so dechlorinated water is not needed in ponds or aquariums; fills at a rate of approximately 1.5 gallons per minute

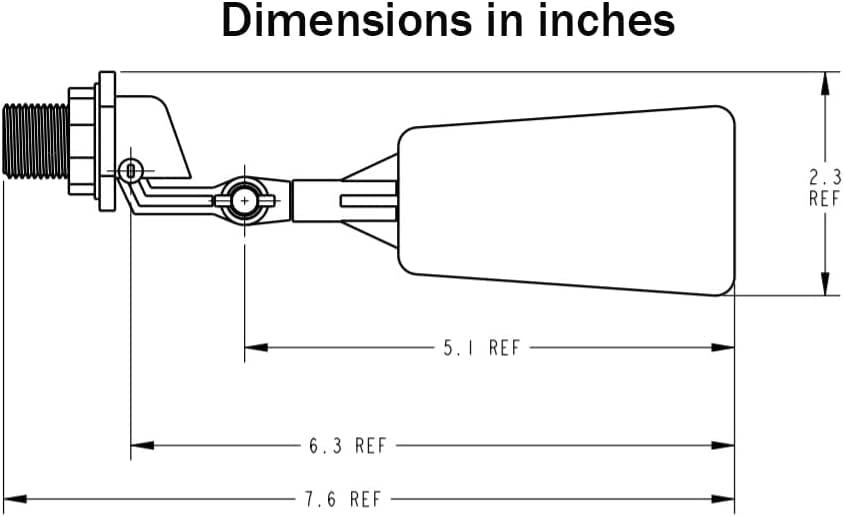

SPECIFICATIONS: unit is 7.6 inches long x 2.3 inches wide x 2.3 inches tall (not including adapters); valve has 1/2-inch MNPT threading; steel clamp and adapters included
Is Discontinued By Manufacturer : No
Product Dimensions : 2 x 3 x 9 inches; 6.4 ounces
Item model number : 566286
Date First Available : August 19, 2004
Manufacturer : Little Giant
Best Sellers Rank: #374,478 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden)
- #1,338 in Water Garden & Pond Pumps
Customer Reviews:
The Little Giant AFV-GH Auto Fill Valve Kit is designed to automatically fill skimmers, ponds, aquariums, fountains, or reservoirs. This unit includes fittings for a standard 3/4-inch garden hose, 1/2-inch garden hose, 1/2-inch tubing or 1/2 inch PVC pipe. Water is added at a rate of approximately 1.5 gallons per minute to help maintain a healthy ecosystem so dechlorinated water is not needed. The auto-fill valve will maintain the water level approximately 1-1/4-inch below the horizontal center line of the mounting hole. Adjustment to the water level can be made by adjusting the wing nut near the float.
